STEGO ELEKTRONISCHER HYGROSTAT 120V AC 65% rF

product number: 01246.9-00

  • Manufacturer: STEGO

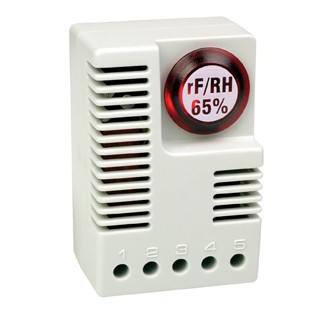

STEGO ELEKTRONISCHER HYGROSTAT 120V AC 65% rF
Picture may vary
Description:
The hygrostat is used to prevent condensate and monitors the relative humidity in enclosures and casings. When the set value is reached, the heating is switched on and the integrated LED lights up.
From 1 pieces per EUR 51,88
From 5 pieces per EUR 43,24
From 10 pieces per EUR 39,31
From 25 pieces per EUR 37,44
in stock: 0 pieces
Single price: EUR 37,44 - EUR 51,88 per pieces
Total price:

EUR 37,44 - EUR 51,88

Quantity exceeded the max. order quantity (max. 50.000)

General parameters

Product category Regulators
Model Electronic hygrostat
Dimensions 64.5 x 42 x 38 mm
for mounting Clip for 35 mm rail, EN 60715
Manufacture STEGO
Series designation EFR 012

Electrical parameters

Voltage 120 V AC
Frequency 50-60 Hz

Material characteristics

Housing material Plastic
Flammability UL 94 V-0
Colour housing light grey

Technical characteristics

Connection 5-pole clamp: Rigid wire/ stranded wire with 2,5 mm2 wire end ferrule (AWG 14)
Degree of protection (IP) 20
Working temperature 0 °C - +60 °C
Storage temperature -20 °C - +70 °C
Application/Storage humidity max. 90 % rF
Life endurance > 50000 mating cycles
Delay-on energization time 5 s
Form of contact Changer

Other

Weight 70 g
Note Other versions on request
Aliases 01246900
01246.9.00
01246-9-00
1246900

Conformities

Approval CE,UKCA,EAC,UL,VDE

Downloads

Product data sheet
