Harting ÜBERSPANNUNGSSCHUTZMODUL

product number: 09 80 003 0200

  • Manufacturer: Harting
  • Manufacturer Short Name: Han-Modular SP SO DM2

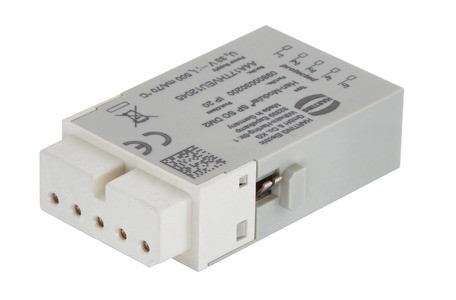

Harting ÜBERSPANNUNGSSCHUTZMODUL
Picture may vary
Description:
Han-Smart Surge protection module, Single module, Two channels, Differential mode without common refence potential, Push-In, Female, Contacts: 5, Conductor cross-section: 0.25...1.5 mm², Polyamide (PA), RAL 7032 (pebble grey)
From 1 pieces per EUR 177,88
From 5 pieces per EUR 163,46
From 10 pieces per EUR 153,84
From 25 pieces per EUR 144,23
in stock: 0 pieces
Single price: EUR 144,23 - EUR 177,88 per pieces
Total price:

EUR 144,23 - EUR 177,88

Quantity exceeded the max. order quantity (max. 50.000)

General parameters

Number of poles 5
Number of power contacts 5

Electrical parameters

Type of electric connection Other

Material characteristics

Material contact Other
Material of contact insert Thermoplastic
Material of contact surface Other
Material connector of connector insert Thermoplastic
Inflammability class of insulation material acc. with UL94 V0

Technical characteristics

Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 1.5 mm²
Connectable conductor cross section multi-wired 0.25 - 1.5 mm²
Contact type Bus
Contact insert without contacts no
With wire protection no
Min. number of insertion cycles 500

Other

Aliases 09800030200
09.80.003.0200
09-80-003-0200
9800030200

Conformities

RoHS compliant yes
REACH SVHC substances ja
REACH Annex XIV substances Not contained
REACH ANNEX XVII substances Not contained
China RoHS 50

Downloads

Dimensioned drawing
Deklaration RoHS
3D object
